These tailor-made air coolers are used for applications where standard range is no fully compliant with the specifications or customer needs. The technical flexibility in terms of geometry, materials, ventilation and finishing is extremely high and allows to propose an optimized design fully compliant with the customer specifications.

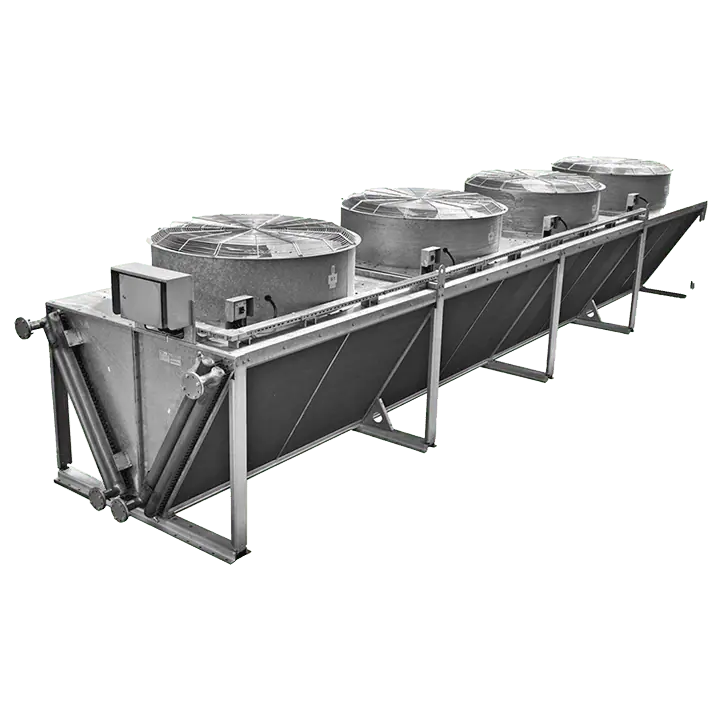

3 Types of Configurations
Heat Exchange Surface & Material
Tube Material:
Seamless, Copper, Stainless Steel AISI304, AISI316 or CuNi, diameter of 12 and 15 mm, thickness up to 1.5 mm
Fin Materials:
Aluminium or Epoxy coated Aluminium, AlMg 2.5, AlMg 3, Copper, Stainless steel and CuSn,- thickness from 0.11 up to 0,25 mm – pitch from 1.8 up to 12 mm
Headers:
- Cylindrical pipe type (brazed or welded), in Copper, Carbon Steel or Stainless Steel.
- Removable for internal access, in Carbon Steel or Stainless Steel
Ventilation casings, frames and supporting legs and fan rings:
- Galvanized steel Z275 with electrostatic powder coating
- Carbon Steel Hot dip galvanized according to ISO 1461
- Carbon Steel epoxy or liquid painted up to C5 M
- Stainless Steel
Electrical Scope
Basic supply:
- Safety switch beside each motorfan group
- Power cable from motorfan groups to safety switch
- Cable tray from safetry switches to end of the module
Optional:
- Junction box (located at the end of the module) to collect motorfan groups cable

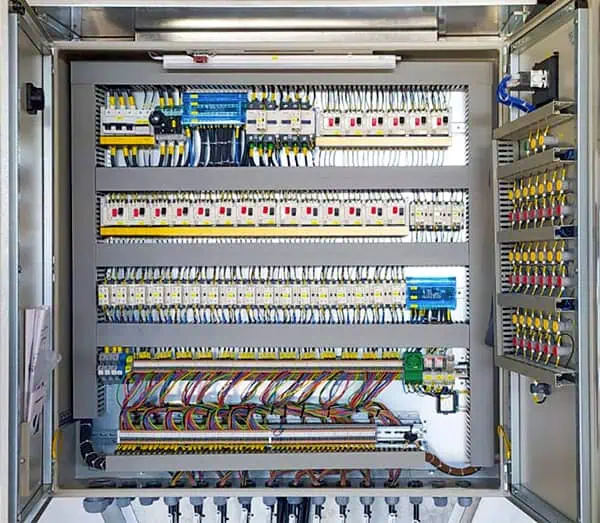

- Electrical control cabinet to manage the motorfangroups
- Power and control cables and cable trays to Junction box and control cabinet
- Instrumentation (Temperature and pressure)
