Innovation at the Core

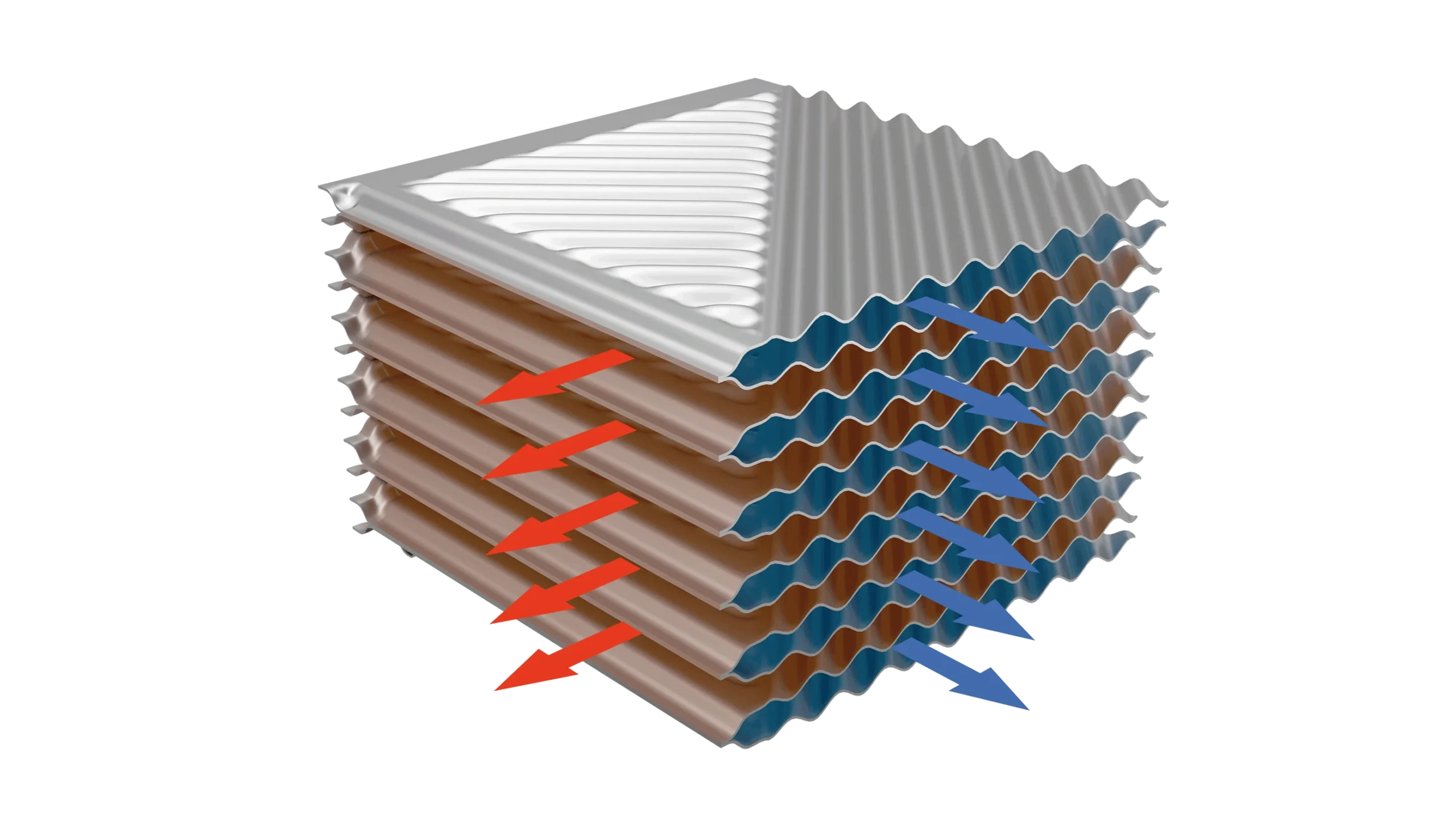

Novel Plate Design
Our design, protected by patent, delivers unparalleled weld quality and durability, standing up to fluctuating pressure and temperature without adding extra pressure loss.
Precision Engineered Strength
Withstand challenging Conditions
Engineered to perform under challenging conditions, whether dealing with single-phase or two-phase flow scenarios. The absence of gaskets for fluid separation eradicates concerns over fluid compatibility, even with the most aggressive substances.
Every Angle, Every Detail
Fully accessible for cleaning
The NovusBloc® design ensures complete accessibility for thorough mechanical cleaning and detailed visual inspections from every angle.
Welded block heat exchanger
Technical Information
| No. | Model | Max Connection Size | Max Unit Height (mm) | Max Flowrate (m3/h) |
|---|---|---|---|---|
| 1 | TB030 | DN 150 / ANSI 6″ | 1400 | 380 |
| 2 | TB050 | DN 300 / ANSI 12″ | 2150 | 1520 |
| 3 | TB075 | DN 500 / ANSI 20″ | 3475 | 4250 |
| 4 | TB120 | DN 1000 / ANSI 40″ | 3570 | 16980 |
Welded block heat exchanger
Design Specification
| No. | Model | Max Connection Size | Max Unit Height (mm) |
|---|---|---|---|
| 01 | HTA (m2/set)HTA (m2/set) | 6,6 | 865 |
| 02 | Design temperature (°C) | – 50 | 350 |
| 03 | Design pressure (bar) | FV. | 42 |
| 04 | Design Code | ASME, EN, JIS |
Welded block heat exchanger
Material Information
| Plate Material | Shell Material |
|---|---|
| 316L SS丨254 SMO丨C-276 | Carbon Steel丨Stainless Steel丨Duplex |
